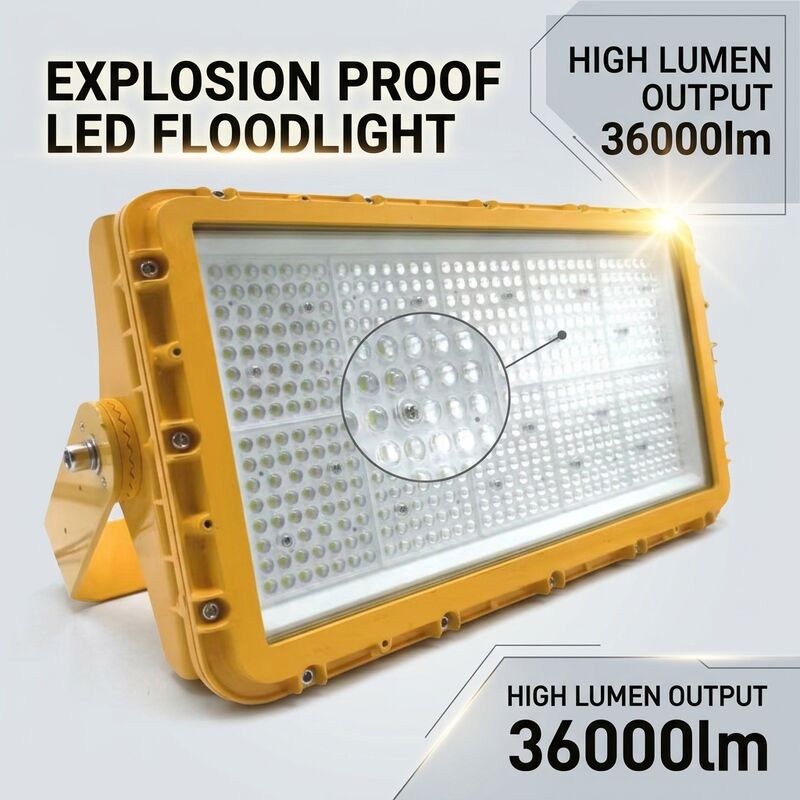

600W Explosion Proof LED Flood Light IECEx Emergency Battery Backup 72000lm IP67 Copper-Free Aluminum Marine Lighting
Détails sur le produit:
| Lieu d'origine: | Guangdong, Chine |
| Nom de marque: | Fins board, BOCAQ |
| Certification: | CE,ROHS,FCC,PSE,CCC,ATEX, ISO9001,BSCI |
| Numéro de modèle: | EPFL-600W-EMG |
Conditions de paiement et expédition:
| Quantité de commande min: | 10 pièces |
|---|---|
| Prix: | Négociable |
| Détails d'emballage: | Boîte + bulle ou sur mesure |
| Délai de livraison: | 10 à 15 jours ou confirmer |
| Conditions de paiement: | T/T, Union occidentale |
| Capacité d'approvisionnement: | 5000 pièces/mois |
|
Détail Infomation |
|||
| Pouvoir: | 600W | Flux lumineux: | 72000lm |
|---|---|---|---|
| Efficacité: | 120lm/w | Température de couleur: | 5000K (blanc froid) |
| Angle de faisceau: | 120° | Tension d'entrée: | CA 100-277 V 50/60 Hz |
| Puce menée: | Philip.s Lumileds 3030 | Indice IP: | IP67 |
| Matériau du boîtier: | Alliage d'aluminium sans cuivre avec revêtement époxy de qualité marine | Matériau de la lentille: | Verre trempé 5mm |
| Température de fonctionnement: | -40°C à +55°C | Certification: | IECEx Ex d IIC T6 Gb |
| Durée de vie: | ≥50 000 heures L70 | Garantie: | 5 ans |
| Mettre en évidence: | Emergency Explosion Proof Light,IECEx Battery Backup Floodlight,90min Autonomous Hazardous Light |
||
Description de produit
600W Explosion Proof LED Flood Light - IECEx Emergency Battery Backup
Product Overview
The EPFL-600W-EMG is a 600W explosion proof LED flood light engineered for demanding industrial environments. This wide 120° floodlight provides exceptional illumination while maintaining the strictest safety standards for hazardous locations.
Key Features
- 600W High Power Output - 72000lm total luminous flux with 120lm/W efficacy, replacing traditional HID equivalents with significant energy savings
- IECEx Ex d Certified - IECEx Ex d IIC T6 Gb for hazardous gas and dust atmospheres
- Robust Copper-Free Aluminum Alloy Housing - Copper-Free Aluminum Alloy with Marine-Grade Epoxy Coating with corrosion-resistant coating for long-term durability
- IP67 Protection - Fully sealed against environmental ingress, suitable for the harshest industrial environments
- 5mm Tempered Glass Lens - High-transmittance safety glass with impact resistance rating
- Philip.s Lumileds 3030 LEDs - Premium LED chips delivering stable 5000K (Cool White) light with excellent uniformity
- 120° Beam Angle - Optimized wide-angle light distribution for large-area coverage for industrial hazardous area applications
- Universal Voltage Input - AC 100-277V 50/60Hz compatible with global electrical systems
- Multiple Mounting Options - Adjustable bracket, pole mount, and ceiling mount configurations included
- 5-Year Warranty - Backed by ≥50,000 hours L70 lifespan testing
- Integrated Battery Backup - Built-in LiFePO4 battery module provides >90 minutes of autonomous operation at full brightness upon mains power loss
- Automatic Failover - Seamless <0.2 second switchover with self-test functionality compliant with IEC 60598-2-22 emergency lighting standards
Applications
Ideal for hazardous classified areas including:
- Emergency egress lighting, muster stations, lifeboat embarkation areas, and safety-critical zones
- Oil refineries and petrochemical processing plants
- Offshore drilling platforms and FPSO vessels
- Chemical storage warehouses and mixing facilities
- Gas compressor stations and LNG terminals
- Paint spray booths and solvent handling areas
Technical Specifications
| Model Number | EPFL-600W-EMG |
|---|---|
| Power Consumption | 600W |
| Luminous Flux | 72000lm |
| Efficacy | 120lm/W |
| Color Temperature | 5000K (Cool White) |
| Beam Angle | 120° |
| Input Voltage | AC 100-277V 50/60Hz |
| LED Chip | Philip.s Lumileds 3030 |
| IP Rating | IP67 |
| Housing Material | Copper-Free Aluminum Alloy with Marine-Grade Epoxy Coating |
| Lens | Tempered Glass 5mm |
| Operating Temperature | -40°C to +55°C |
| Mounting | Adjustable Bracket / Pole Mount / Ceiling Mount |
| Certification | IECEx Ex d IIC T6 Gb |
| Lifespan | ≥50,000 Hours L70 |
| Warranty | 5 Years |
ECER delivers explosion proof LED flood lights that combine cutting-edge LED technology with rigorous safety engineering. Each unit undergoes 100% factory testing including pressure testing of the explosion-proof enclosure and photometric verification.
For bulk orders, OEM/ODM customization, or technical inquiries, please contact our sales team.
