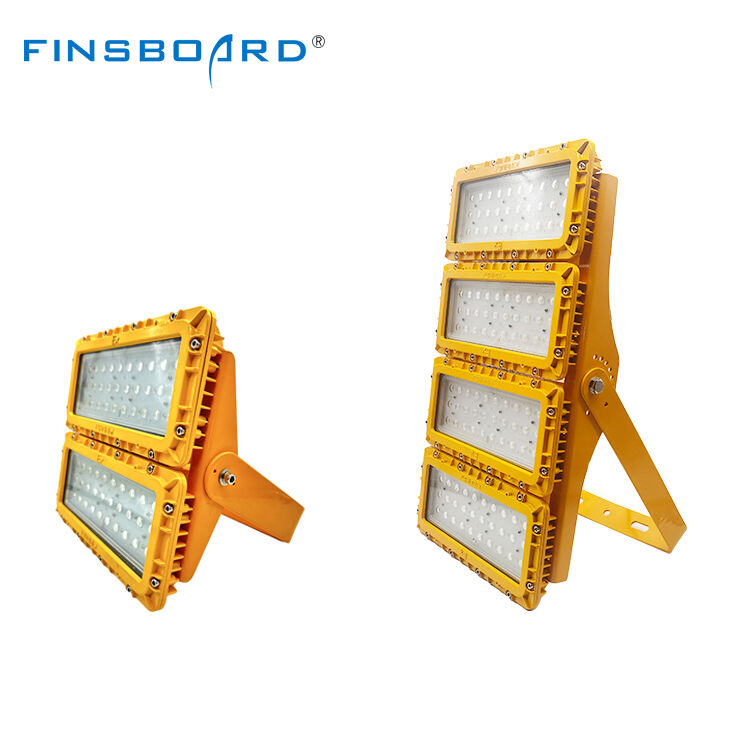

600W LED Explosion Proof Flood Light High Bay Warehouse Compressor Hall 10m+ Mounting IP65 Die-Cast Aluminum ADC12
Détails sur le produit:
| Lieu d'origine: | Guangdong, Chine |
| Nom de marque: | ECER |
| Certification: | ATEX II 2G Ex d IIC T6 Gb, CE, ISO 9001:2015 |
| Numéro de modèle: | EPFL-600W-HB |
Conditions de paiement et expédition:
| Quantité de commande min: | 10 pièces |
|---|---|
| Prix: | Négociable |
| Détails d'emballage: | Boîte + bulle ou sur mesure |
| Délai de livraison: | 10 à 15 jours ou confirmer |
| Conditions de paiement: | T/T, Union occidentale |
| Capacité d'approvisionnement: | 5000 pièces/mois |
|
Détail Infomation |
|||
| Pouvoir: | 600W | Flux lumineux: | 78000lm |
|---|---|---|---|
| Efficacité: | 130 lm/W | Angle de faisceau: | 90° |
| Température de couleur: | 5000K | Puce menée: | Bridgelux CMS 3030 |
| Indice IP: | IP65 | Matériau du boîtier: | Aluminium moulé sous pression ADC12 |
| Température de fonctionnement: | -40°C à +60°C | Certification: | ATEX II 2G Ex d IIC T6 Gb |
| Durée de vie: | ≥50 000 heures L70 | Garantie: | 5 ans |
| Mettre en évidence: | 600W explosion proof LED flood light,high bay warehouse LED flood light,IP65 die-cast aluminum flood light |
||
Description de produit
600W LED Explosion Proof Flood Light - High Bay Warehouse Compressor Hall
The EPFL-600W-HB is a 600W LED explosion proof flood light delivering 78000lm luminous flux with 130lm/W efficiency. ATEX II 2G Ex d IIC T6 Gb certified with IP65 protection, this purpose-engineered floodlight features Die-Cast Aluminum ADC12 for demanding classified area applications.
Key Features
- 600W High-Efficiency Output - 78000lm total luminous flux at 130lm/W, replacing traditional HID fixtures with superior energy performance
- ATEX II 2G Ex d IIC T6 Gb Certified - Full explosion-proof certification for Zone 1/Zone 2 gas and Zone 21/Zone 22 dust hazardous atmospheres
- High-Bay Optimized Optics - Specialized reflector design for mounting heights of 10-20m, delivering uniform floor-level illumination in compressor halls, turbine buildings, and high-ceiling hazardous warehouses
- IP65 Protection - Fully sealed against environmental ingress for reliable outdoor and industrial operation
- High Transmittance Tempered Glass - Safety glass lens with excellent light transmission and impact resistance
- Die-Cast Fin Heat Dissipation - Advanced thermal management ensuring consistent 600W performance and extended LED lifespan
- 180° Adjustable Bracket - Flexible angle adjustment for precise positioning in any installation scenario
- Universal Voltage Input - Compatible with global power distribution systems for simplified international deployment
- 5-Year Warranty - Backed by ≥50,000 hours L70 rated lifespan and factory quality testing
Applications
Engineered for Petrochemical warehouses, compressor halls, turbine buildings, and high-bay hazardous industrial facilities exceeding 10m mounting height:
- Oil and gas exploration, production and refining facilities
- Petrochemical processing and chemical manufacturing plants
- Offshore platforms, FPSOs and marine terminals
- Pharmaceutical and food processing classified zones
- Mining, tunneling and underground hazardous spaces
- Emergency and safety-critical lighting applications
Technical Specifications
| Model Number | EPFL-600W-HB |
|---|---|
| Power Consumption | 600W |
| Luminous Flux | 78000lm |
| Efficacy | 130lm/W |
| Beam Angle | 90° |
| Color Temperature | 5000K |
| LED Chip | Bridgelux SMD 3030 |
| IP Rating | IP65 |
| Housing Material | Die-Cast Aluminum ADC12 |
| Operating Temperature | -40°C to +60°C |
| Certification | ATEX II 2G Ex d IIC T6 Gb |
| Lifespan | ≥50,000 Hours L70 |
| Warranty | 5 Years |
Each unit undergoes 100% factory testing of the explosion-proof enclosure integrity and photometric performance verification. Our 5-year warranty reflects confidence in the long-term reliability of the EPFL-600W-HB design.
For bulk orders, OEM customization, or technical inquiries, please contact our sales team.
