600W LED Explosion Proof Flood Light Dual Beam Switchable 30° Spot 90° Flood Multi-Purpose IP66 Die-Cast Aluminum ADC12
Détails sur le produit:
| Lieu d'origine: | Guangdong, Chine |
| Nom de marque: | ECER |
| Certification: | ATEX II 2G Ex d IIC T6 Gb, CE, ISO 9001:2015 |
| Numéro de modèle: | EPFL-600W-DUAL |
Conditions de paiement et expédition:
| Quantité de commande min: | 10 pièces |
|---|---|
| Prix: | Négociable |
| Détails d'emballage: | Boîte + bulle ou sur mesure |
| Délai de livraison: | 10 à 15 jours ou confirmer |
| Conditions de paiement: | T/T, Union occidentale |
| Capacité d'approvisionnement: | 5000 pièces/mois |
|
Détail Infomation |
|||
| Pouvoir: | 600W | Flux lumineux: | 72000lm |
|---|---|---|---|
| Efficacité: | 120lm/w | Angle de faisceau: | 30°/90° commutable |
| Température de couleur: | 5000K | Puce menée: | Bridgelux CMS 3030 |
| Indice IP: | IP66 | Matériau du boîtier: | Aluminium moulé sous pression ADC12 |
| Température de fonctionnement: | -40°C à +55°C | Certification: | ATEX II 2G Ex d IIC T6 Gb |
| Durée de vie: | ≥50 000 heures L70 | Garantie: | 5 ans |
| Mettre en évidence: | 600W explosion proof LED flood light,dual beam switchable LED flood light,IP66 die-cast aluminum flood light |
||
Description de produit

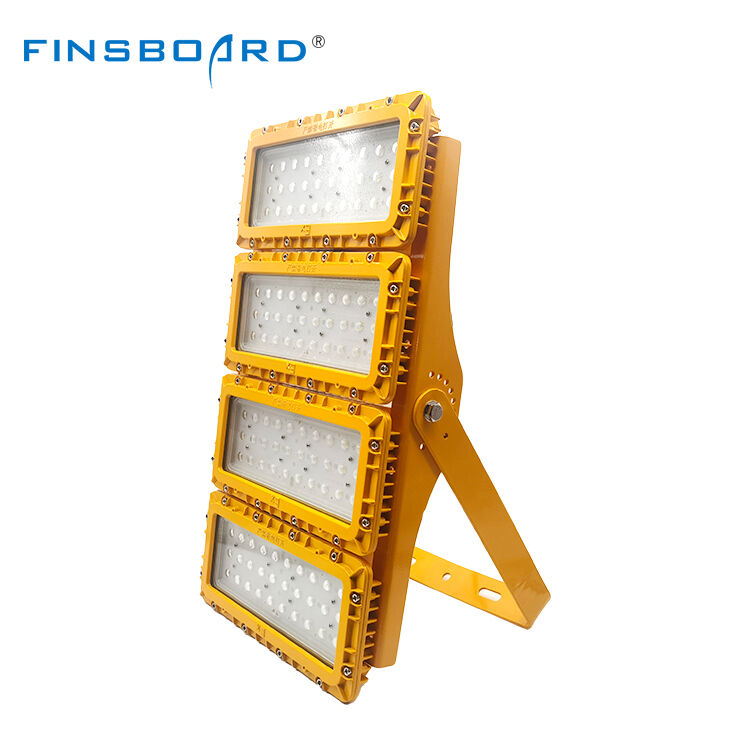

600W LED Explosion Proof Flood Light - Dual Beam Switchable
The EPFL-600W-DUAL is a 600W LED explosion proof flood light delivering 72000lm luminous flux with 120lm/W efficiency. ATEX II 2G Ex d IIC T6 Gb certified with IP66 protection, this purpose-engineered floodlight features Die-Cast Aluminum ADC12 for demanding classified area applications.
Key Features
- 600W High-Efficiency Output - 72000lm total luminous flux at 120lm/W, replacing traditional HID fixtures with superior energy performance
- ATEX II 2G Ex d IIC T6 Gb Certified - Full explosion-proof certification for Zone 1/Zone 2 gas and Zone 21/Zone 22 dust hazardous atmospheres
- Switchable Dual Beam Optics - Tool-free mechanical beam switching between 30° spot and 90° flood modes, enabling one fixture to serve both long-range and wide-area applications
- IP66 Protection - Fully sealed against environmental ingress for reliable outdoor and industrial operation
- High Transmittance Tempered Glass - Safety glass lens with excellent light transmission and impact resistance
- Die-Cast Fin Heat Dissipation - Advanced thermal management ensuring consistent 600W performance and extended LED lifespan
- 180° Adjustable Bracket - Flexible angle adjustment for precise positioning in any installation scenario
- Universal Voltage Input - Compatible with global power distribution systems for simplified international deployment
- 5-Year Warranty - Backed by ≥50,000 hours L70 rated lifespan and factory quality testing
Applications
Engineered for multi-purpose hazardous areas requiring both spot and flood illumination, plant turnarounds, and flexible area lighting:
- Oil and gas exploration, production and refining facilities
- Petrochemical processing and chemical manufacturing plants
- Offshore platforms, FPSOs and marine terminals
- Pharmaceutical and food processing classified zones
- Mining, tunneling and underground hazardous spaces
- Emergency and safety-critical lighting applications
Technical Specifications
| Model Number | EPFL-600W-DUAL |
| Power Consumption | 600W |
| Luminous Flux | 72000lm |
| Efficacy | 120lm/W |
| Beam Angle | 30°/90° Switchable |
| Color Temperature | 5000K |
| LED Chip | Bridgelux SMD 3030 |
| IP Rating | IP66 |
| Housing Material | Die-Cast Aluminum ADC12 |
| Operating Temperature | -40°C to +55°C |
| Certification | ATEX II 2G Ex d IIC T6 Gb |
| Lifespan | ≥50,000 Hours L70 |
| Warranty | 5 Years |
Each unit undergoes 100% factory testing of the explosion-proof enclosure integrity and photometric performance verification. Our 5-year warranty reflects confidence in the long-term reliability of the EPFL-600W-DUAL design.
For bulk orders, OEM customization, or technical inquiries, please contact our sales team.
